| DRV10987 50W三相無傳感器BLDC馬達驅動方案 |
|
|
| 文章來源：永阜康科技 更新時間：2018/4/12 13:31:00 |
在線咨詢： |
| |
TI公司的DRV10987是50W 12V-24V三相無傳感器BLDC馬達驅動器,集成了功率MOSFET,提供連續驅動電流高達2A,馬達工作電壓6.2V-28V,集成了降壓轉換器5V/100mA,LDO 3.3V/20mA,主要用在空氣凈化器和加濕器,三向BLDC和PMSM馬達,烘干循環風機,排水和水泵,臺扇和吊扇.本文介紹了DRV10987主要特性,框圖,應用電路圖以及評估模塊DRV10987 EVM主要特性,電路圖,材料清單.
The DRV10987 device is a 3-phase sensorless 180°sinusodial motor driver with integrated powerMOSFETs, which can provide continuous drivecurrent up to 2 A. The device is specifically designedfor cost-sensitive, low-noise, low-external-componentcount fan and pump applications.™
The DRV10987 device delivers current to the motorwith supply voltage as low as 6.2 V. If the powersupply voltage is higher than 28 V, the device stopsdriving the motor and protects the DRV10987circuitry.
The DRV10987 device uses a proprietary sensorless control scheme to provide continuous sinusoidal drive,which significantly reduces the pure tone acoustics that typically occur as a result of commutation. The interfaceto the device is designed to be simple and flexible. The motor can be controlled directly through PWM, analog, orI2C inputs. Motor speed feedback is available through both the FG pin and the I2C interface simultaneously.
The DRV10987 device features an integrated buck regulator to step down the supply voltage efficiently to 5 V forpowering both internal and external circuits. The 3.3-V LDO also may be used to provide power for externalcircuits. The standby-mode (8.5 mA) version (DRV10987S) leaves the regulator running, and the sleep-mode (48μA) version (DRV10987D) shuts the regulator off. Throughout this data sheet, the DRV10987 part number isused for both devices, that is, DRV10987D (sleep version) and DRV10987S (standby version), except for specificdiscussions of sleep vs standby functionality.
An I2C interface allows the user to rEPROgram specific motor parameters in registers and to program theEEPROM to help optimize the performance for a given application. The DRV10987 device is available in athermally-efficient HTSSOP, 24-pin package with an exposed thermal pad. The operating ambient temperature isspecified from –40℃ to 125℃.
DRV10987主要特性:
1• Operation Voltage Range:
– Motor Operation, 6.2 V to 28 V
• Total Driver H + L rDS(on)
– 250 mΩ at TA = 25℃
• Drive Current: 2-A Continuous Winding Current(3-A Peak)
• Sensorless Sinusoidal 180° Commutation Scheme
• Configurable Output PWM Slew Rate andFrequency for EMI Management
• Initial Position-Detect Algorithm to Avoid Back-Spin During Start-Up
• No External Sense Resistor Required
• Flexible User Interface Options:
– I2C Interface: Access Registers for Commandand Feedback
– Dedicated SPEED Pin: Accepts Either Analogor PWM Input
– Dedicated FG Pin: Provides TACH Feedback
– Spin-Up Profile Can Be Customized WithEEPROM
– Forward-Reverse Control With DIR Pin
• Integrated Buck Converter, 5‑V, 100-mA
• Integrated LDO, 3.3‑V, 20-mA
• Standby Current, 8.5-mA
• Supply Current of 8.5 mA With Standby Version(DRV10987S)
• Supply Current of 48 μA With Sleep Version(DRV10987D)
• Protection Features
– Overcurrent Protection (Phase-to-Phase,Phase-to-GND and Phase-to-VCC Short
Circuits)
– Lock Detection to Detect Rotor Lock Condition
– Anti-Voltage Surge (AVS) Protection
– Undervoltae Lockout (UVLO)
– Overvoltage Protection
– Thermal Warning and Shutdown
• Thermally Enhanced Package
DRV10987應用:
• Pedestal and Ceiling Fans
• Air Purifiers and Humidifiers
• Dryer Circulation Fans
• Drain and Water Pumps
• Three-Phase BLDC and PMSM Motors

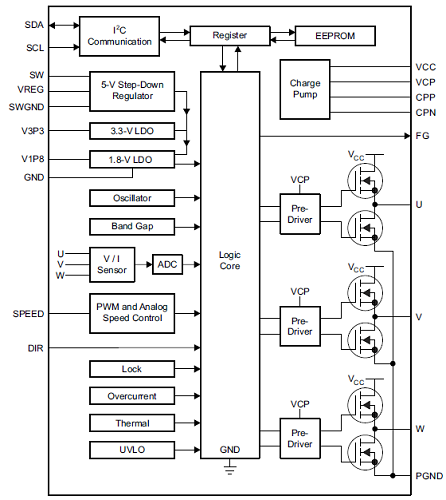

圖1.DRV10987功能框圖

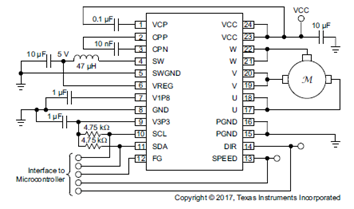

圖2.DRV10987典型應用電路圖
評估模塊DRV10987 EVM
This user ’s guide provides complete details of the customer evaluation module (EVM) for the DRV10987device including hardware implementation, jumper configuration, and operating procedure to run 3-phaseBLDC motors. This EVM user’s guide is intended to be used with the DRV10987 Tuning Guide tooptimally tune a user motor.
The DRV10987 EVM is a complete solution for evaluating the DRV10987 12-V or 24-V, three-phasesensorless BLDC motor drivers. Device evaluation and configuration for specific applications is possiblewith the provided DRV10987 EVM GUI. This document describes the kit details and explains the functionsand locations of test points, jumpers, and connectors present on the kit. This document is also a quickstartguide for using the GUI to tune a motor for application. For detailed information about the operatingmodes of the DRV10987 device

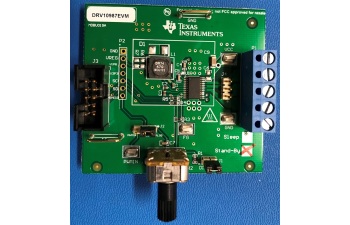

圖3.評估模塊DRV10987 EVM外形圖
評估模塊DRV10987 EVM主要特性:
• DRV10987 EVM board
• USB2ANY communication board for I2C GUI interaction
• USB cable
• 10-pin ribbon cable to connect the USB2ANY and DRV10987 EVM
• DRV10987 EVM GUI
The DRV10987 EVM boards and GUI are designed to work together to evaluate the device features.
圖4.評估模塊DRV10987 EVM PCB打印圖

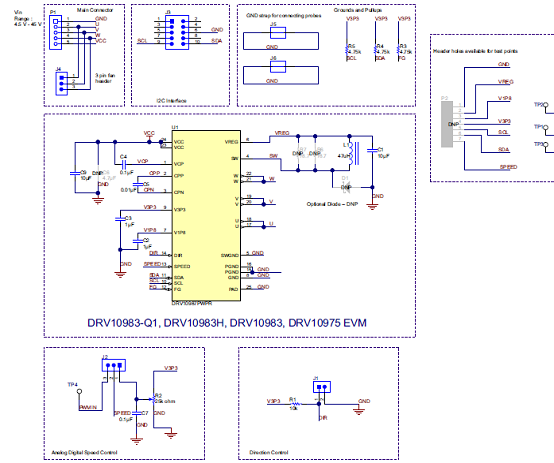

圖5.評估模塊DRV10987 EVM電路圖
評估模塊DRV10987 EVM材料清單:
 |
| |
|
|
|
|
|
| |
| |
| |
 |
