Cypress公司的CY4541EZ-PD CCG4是雙路USB Type-C控制器,采用M0S8技術和32位48MHz ARM Cortex-M0 MCU技術,集成了128KB閃存和兩個完整的Type-C收發器,能為筆記本電腦,電源適配器和塢站提供了完整的雙路USB Type-C和USB電源傳送端口控制解決方案.本文介紹了EZ-PD CCG4主要特性,框圖和邏輯框圖,EZ-PD CCG4 USB-PD子系統框圖,以及采用CYPD4225-40LQXIT的CCG4雙端口筆記本應用電路圖和CY4541 EZ-PD™ CCG4評估套件(EVK)主要特性,框圖,CCG4基板和子板框圖,電路圖和材料清單.
EZ-PD™ CCG4 is a dual USB Type-C controller that complies with the latest USB Type-C and PD standards. EZ-PD CCG4 providesa complete dual USB Type-C and USB-Power Delivery port control solution for notebooks, power adapters and docking stations. Itcan also be used in dual role and downstream facing port applications. EZ-PD CCG4 uses Cypress’s proprietary M0S8 technologywith a 32-bit, 48-MHz ARM® Cortex®-M0 processor with 128 KB flash and integrates two complete Type-C Transceivers including theType-C termination resistors RP and RD.
EZ-PD™ CCG4 is Cypress’s newest USB Type-C port controller with Power Delivery. CCG4 provides a two-port USB-C solution ideal for Desktops, Notebooks and Systems like Power Banks, Monitors and Docks. CCG4 is based on Cypress’s PSoC technology with 128KB flash memory supporting fail-safe boot up. CCG4 supports Upstream Facing Port (UFP), Downstream Facing Port (DFP), and Dual Role Port (DRP) modes. CCG4 reduces BOM by integrating four 1W VCONN FETs, Over-Voltage and Over-Current Protection and 15kV system level ESD protection.
EZ-PD CCG4主要特性:
32-bit MCU Subsystem
■ 48-MHz ARM Cortex-M0 CPU
■ 128-KB Flash
■ 8-KB SRAM
■ In-system reprogrammable
Integrated Digital Blocks
■ Four integrated timers or counters to meet response timesrequired by the USB-PD protocol
■ Four run-time serial communication blocks(SCBs) withreconfigurable I2C, SPI, or UART functionality
Clocks and Oscillators
■ Integrated oscillator eliminating the need for external clock
Type-C Support
■ Two integrated transceivers (baseband PHY)
■ Integrated UFP (RD) and current sources for DFP (RP) on bothType-C ports
■ Integrated dead battery termination for DRP applications
■ Supports two USB Type-C ports
Low-Power Operation
■ 2.7-V to 5.5-V operation
■ Integrated VCONN FETs to power EMCA cables
■ Independent supply voltage pin for GPIO that allows 1.71-V to5.5-V signaling on the I/Os
■ Reset: 1.0 μA, Deep Sleep: 2.5 μA, Sleep: 2.5 mA
System-Level ESD on CC Pins
■ ± 8-kV Contact Discharge and ±15-kV Air Gap Discharge basedon IEC61000-4-2 level 4C
Hot Swappable IOs
■ Port 1 I2C pins and CC1, CC2 pins are hot-swappable
Packages
■ 6.0 mm x6.0 mm, 0.6 mm, 40-pin QFN
■ Supports industrial temperature range (–40℃ to +85℃)
EZ-PD CCG4應用:
■ Notebooks
■ Power adapters
■ Docking stations
圖1.EZ-PD CCG4邏輯框圖

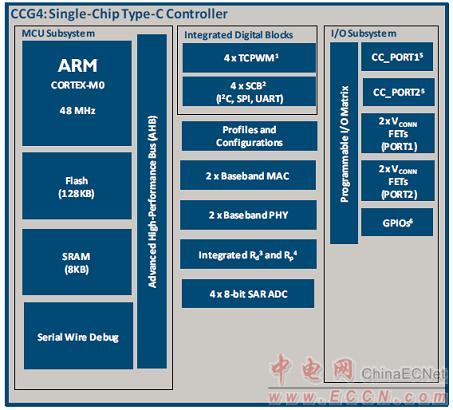

圖2.EZ-PD CCG4框圖

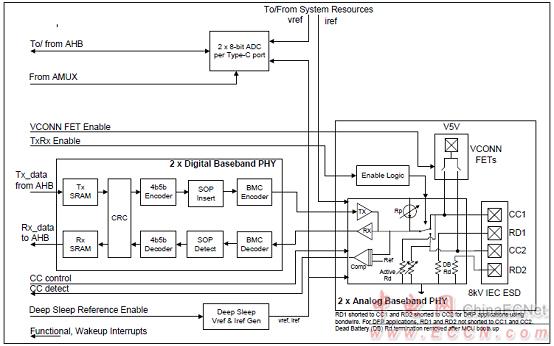

圖3.EZ-PD CCG4 USB-PD子系統框圖

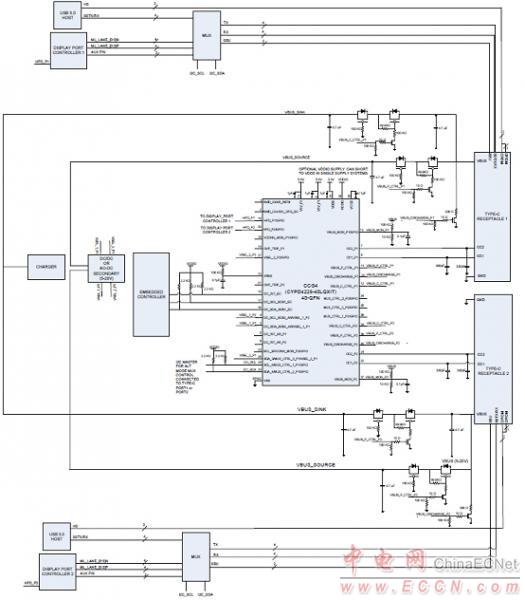

圖4.采用CYPD4225-40LQXIT的CCG4雙端口筆記本應用電路圖

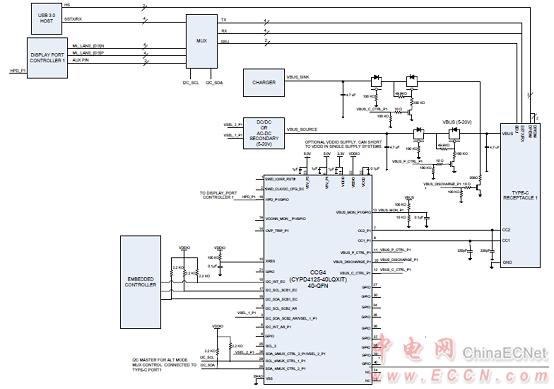

圖5.采用CYPD4125-40LQXIT的CCG4單端口筆記本應用電路圖
CY4541 EZ-PD™ CCG4評估套件(EVK)
The CY4541 EZ-PD™ CCG4 Evaluation Kit (EVK) is based on the Cypress’s CCG4 dual port Type-C Power Delivery (PD) controllers. EZ-PD™ CCG4 is a dual USB Type-C controller that complies with the latest USB Type-C and PD standards. This EVK is primarily intended to be a demonstration vehicle for Type-C PC designs that house one or two Type-C ports. CCG4 can act either as a power provider (Source) or as a power consumer (Sink). The kit also helps to evaluate several features on two Type-C ports, using a Dual Role Port (DRP) or SuperSpeed USB demo, and a DisplayPort demo.
CY4541 EZ-PD™ CCG4評估套件(EVK)包括:
Two CCG EVK base boards assembled with one CCG4 daughter card
One 24-V DC power adapter*
Two SuperSpeed Type-A to Type-B cables
Two Type-C to Type-A dongles
One Type-C cable*
One Type-A to Mini-B cable
One set of jumper wires
One screwdriver
Quick Start Guide

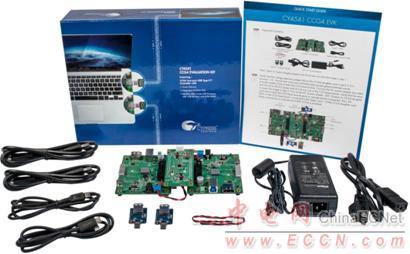

圖6.CY4541 EZ-PD™ CCG4評估套件(EVK)外形圖

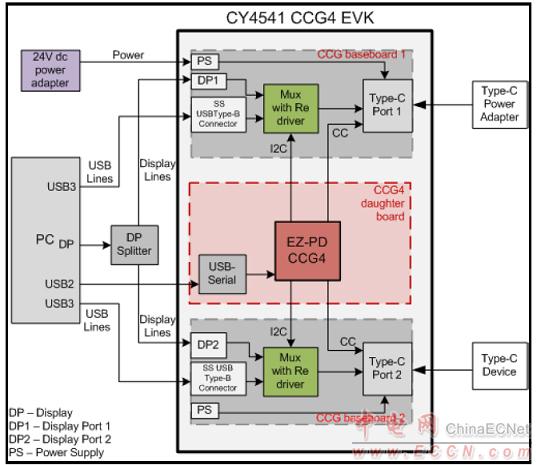

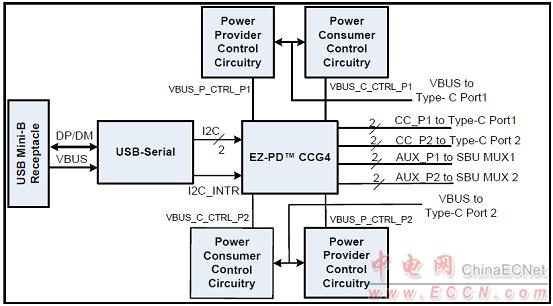

圖7.CY4541 EZ-PD™ CCG4評估套件(EVK)系統框圖

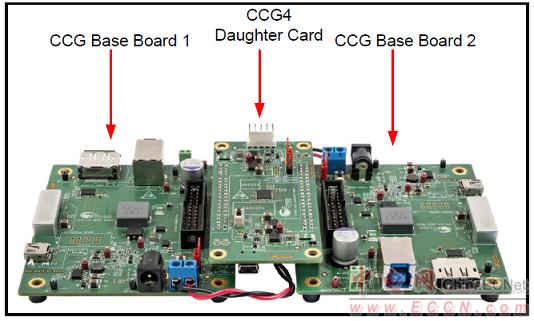

The CY4541 EZ-PD CCG4 EVK consists of two CCG base boards and one CCG4 daughter card. The CCG4 daughter card is connected to the two CCG base boards to evaluate the CCG4’s dual Type-C port capability.
The CCG base board consists of a DC input power supply, a display multiplexer, a DisplayPort connector, a SuperSpeed Type-B port, and a Type-C port. The CCG4 daughter card consists of the CCG4 device and a USB-Serial IC to provide aUSB interface for debugging. CCG4‘s CC lines of the respective Type-C interface are connected to the Type-C port on the CCG base board. CCG4 controls the display multiplexer over an I2C interface.
The CY4541 EZ-PD CCG4 EVK has a power provider and power consumer path control circuitry to showcase CCG4’s ability to switch its power role from a provider to a consumer and vice-versa. This EVK has overvoltage and overcurrent protection circuitry for VBUS and VCONN; it also supports programming CCG4 devices over SWD and I2C interfaces.
A PC with two USB 3.0 ports and a DisplayPort along with the CY4541 EZ-PD CCG4 EVK is equivalent to a PD-enabled dual Type-C port PC.
圖7.CY4541 EZ-PD™ CCG4評估套件(EVK)建立圖
The CCG base board has an onboard Type-C connector for the USB-PD interface and a CCG4 daughter card interface connector to connect the CCG4 daughter card. It also includes a SuperSpeed USB Type-B port and a DisplayPort connector to source video. The SuperSpeed USB signals and DisplayPort signals are connected to the Type-C connector through a display multiplexer controlled by the CCG4 device. A DC power adapter provides input voltage to the onboard Power Management IC (PMIC). The output voltage from the PMIC can be selected using two voltage selection lines, controlled by CCG4. This CCG base board, along with the CCG4 daughter card, helps convert any desktop or notebook PC with legacy USB ports to operate as a Type-C USB host.

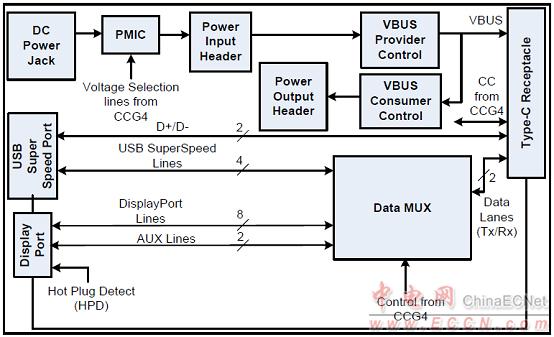

圖8.CCG基板框圖
圖9.CCG基板連接圖
The CCG4 daughter card is an evaluation board with a CCG4 controller (CYPD4225-40LQXIT) and a USB-Serial Bridge Controller (CY7C65215) to provide a USB interface for debugging. The CCG4 daughter card must be assembled with the CCG base boards. This complete assembly setup supports Type-C host applications such as PCs.
PD-enabled USB products (such as a PC with a Type-C port) operate as a power provider and a power consumer. The USB PD specification refers to such USB Type-C ports as Dual Role Ports (DRPs).
圖10.CCG子板框圖

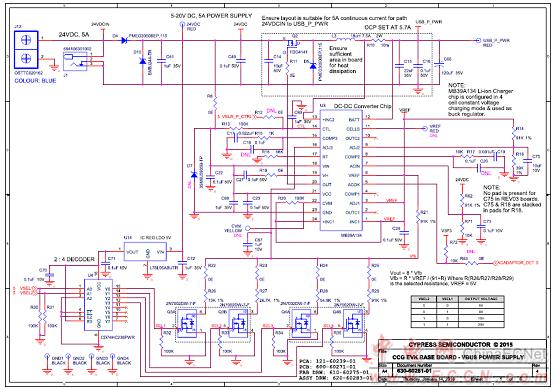

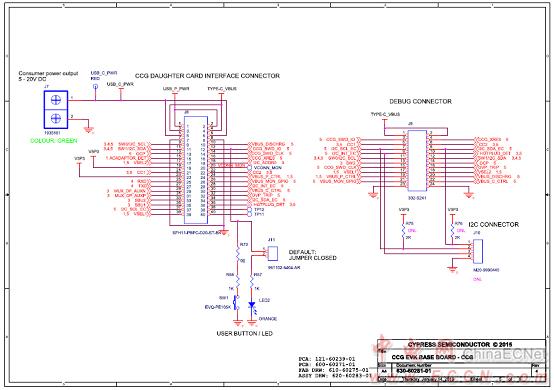

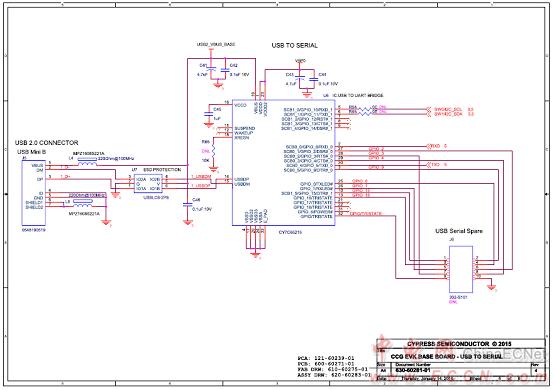

圖11.CCG基板電路圖(1)
圖12.CCG基板電路圖(2)
圖13.CCG基板電路圖(3)
圖14.CCG基板電路圖(4)

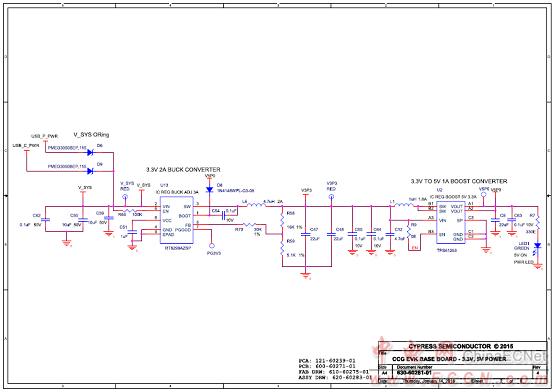

圖15.CCG基板電路圖(5)

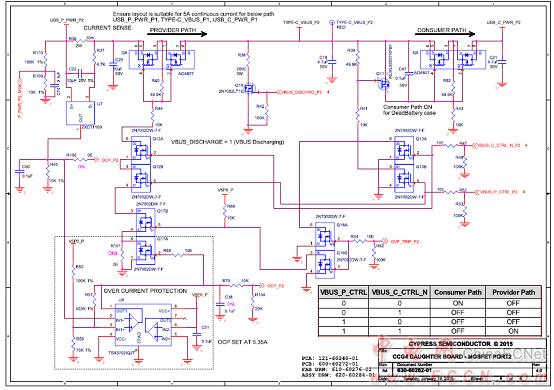

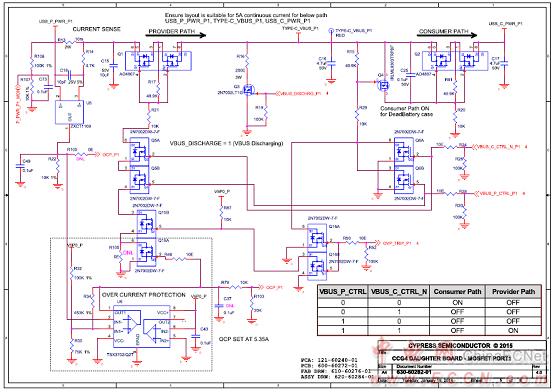

圖16.CCG子板電路圖(1)

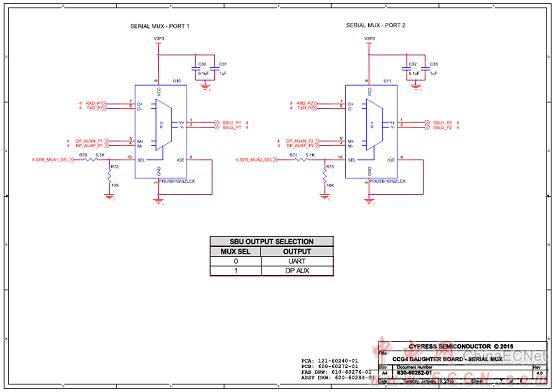

圖17.CCG子板電路圖(2)

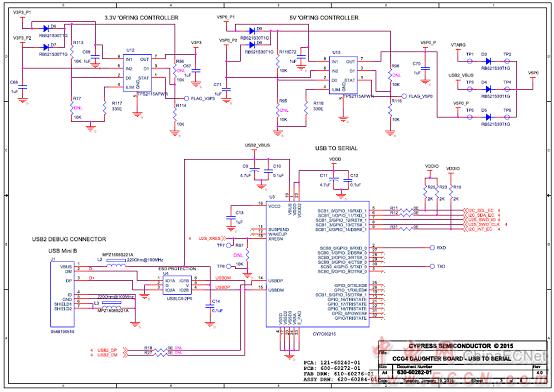

圖18.CCG子板電路圖(3)

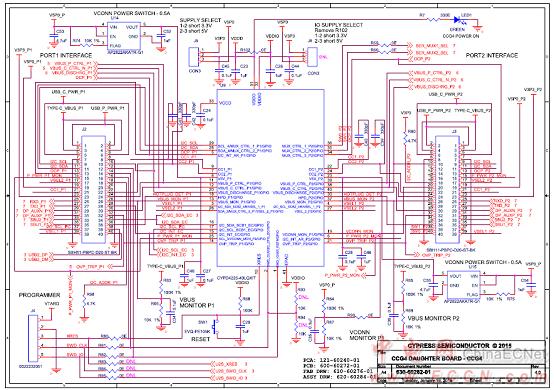

圖19.CCG子板電路圖(4)
圖20.CCG子板電路圖(5)

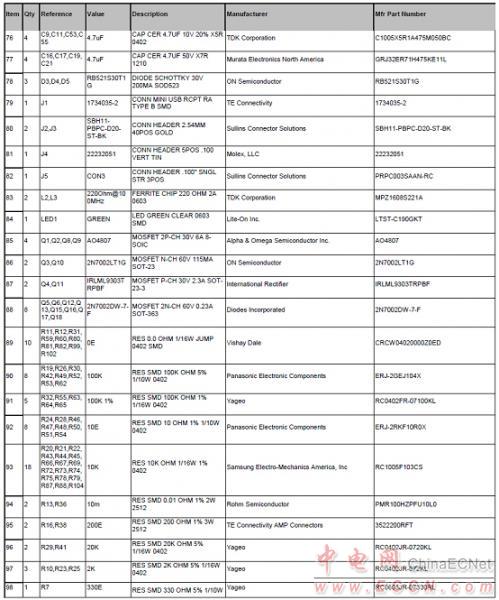

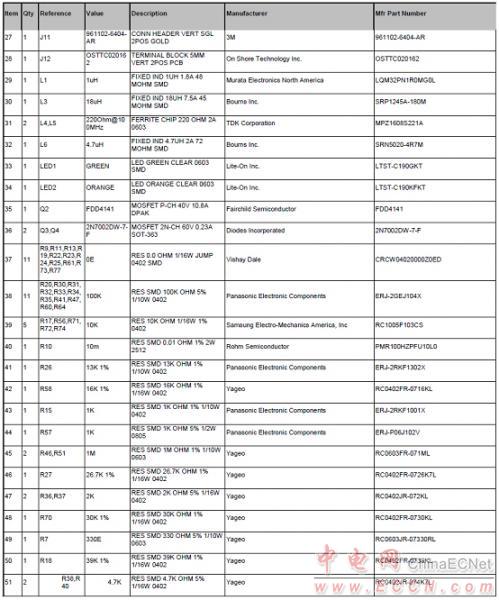

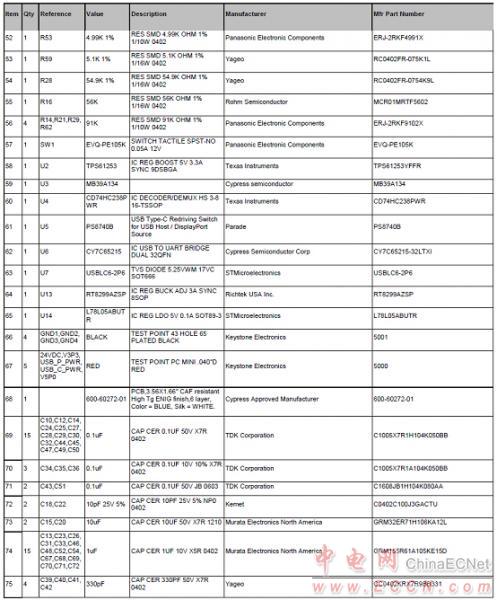

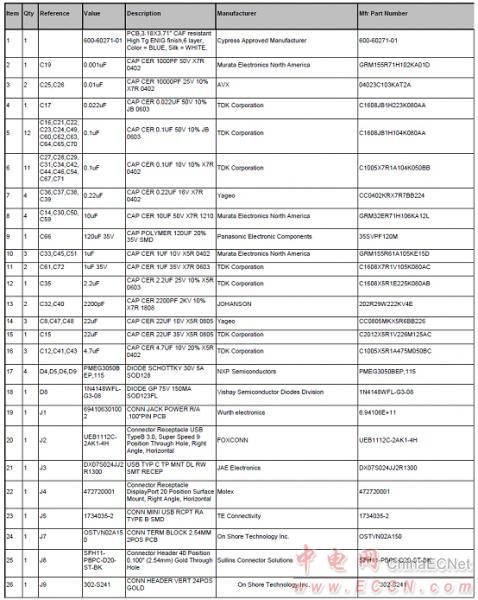

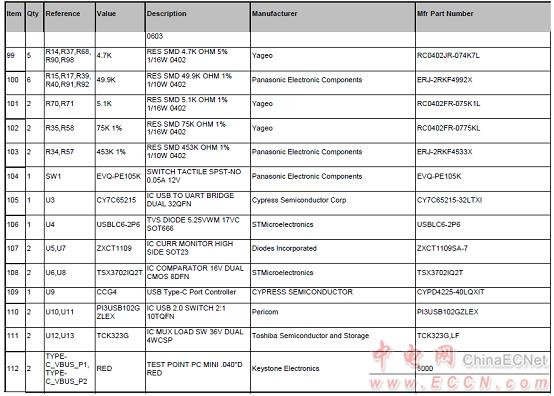

CY4541 EZ-PD™ CCG4評估套件(EVK)材料清單:
|
